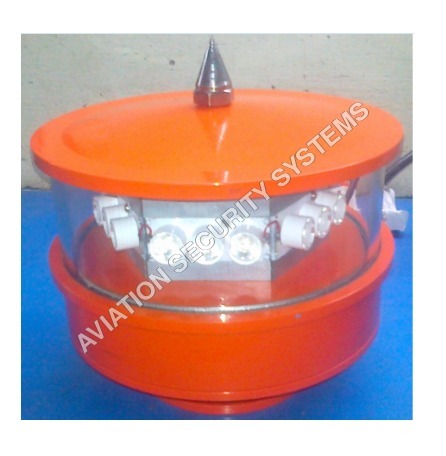

Medium Intensity Aviation Warning Light

Medium Intensity Aviation Warning Light
Medium Intensity Aviation Warning Light
Send Inquiry
Product Code : MIW-18
Brand Name : AVIATION SECURITY SYSTEMS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Being a quality conscious firm, we are engrossed in manufacturing, exporting, and supplying the best quality Medium Intensity Aviation Warning Light. The offered light is manufactured by our brilliant professionals using quality-approved components and latest technology. This light is widely demanded in aviation sector to remove the collision during the passing of aircraft by providing directional warning. Further, this Medium Intensity Aviation Warning Light is available for our global client at the most negotiable prices.

Products Key Features:

  • High efficiency
  • Easy to fit
  • Intricate designs
  • Safe lighting

Products Features:

  • Well known as the Omni-Directional light, this aviation warning product in as per the ICAO, Annexure-14 type 'B'
  • Integrated with high flux, and high power solid state lamps, which provide an prodigiously long usage life which exceeds 50,000 burning hours
  • The overall light system is energy efficient and hence can be used for Solar powered system
  • Luminaire is protected from bird droppings by providing "Bird Spike" with the light.
  • It has a separate enclosure which has weather protection construction. It houses the Solid state Electronic Flasher.
  • Electronic timer or photo sensor allows its operation from dusk to dawn.

    Products Specification:

    Photometric Data

    Night Mode

    Red

    Vertical Beam Spread

    > 3 °

    Horizontal Coverage

    360 °

    "Ground Scatter Light" cut-off angle

    < 3% light output at -5° vertical

    Flash Rate

    20 - 60 FPM


    Electrical Specifications

    Input Supply

    Operating Voltage

    System Operating on DC Volts

    Current (Amp)


    Min

    Max


    Min

    Max

    220V AC with SMPS Supply

    175 V AC

    275 V AC

    12 V

    6

    6.5


    24 V

    3

    6

    48 V

    1.5

    3

    Shipping Specifications

    Carton No.

    Carton Description

    Net Weight (KG)

    Gross Weight (KG)

    Dimn.

    1

    MEDIUM LIGHT

    10.5

    11.6

    440x460x380

    2

    Control Panel

    9

    10.5

    400x300x150



    Electrical Specifications

    Input Supply

    Operating Voltage

    System Operating on DC Volts

    Current (Amp)


    Min

    Max


    Min

    Max

    220V AC with SMPS Supply

    175 V AC

    275 V AC

    12 V

    1.2

    1.6


    24 V

    1.2

    1.6

    48 V

    1.2

    1.6


    Shipping Specifications

    Carton No.

    Carton Description

    Net Weight (KG)

    Gross Weight (KG)

    Dimn.

    1

    MEDIUM LIGHT

    7.5

    8.6

    250x250

    2

    Control Panel

    9

    10.5

    400x300x150

    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID), Cash Advance (CA)
    • Delivery Time
    • 1 Days
    • Sample Available
    • Yes
    • Packaging Details
    • bubble polythene & carton boxes
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
    • Main Domestic Market
    • All India
